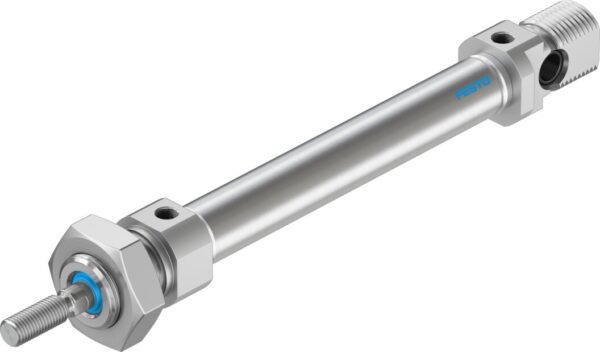

ISO 6432 Stainless Steel Round Cylinder – Ø12 mm x 70 mm Stroke

Designed for reliable and precise pneumatic motion, this double-acting round cylinder conforms to ISO 6432 standards and delivers excellent performance in industrial automation applications. With a 12 mm piston diameter and 70 mm stroke, it provides smooth operation, durability, and easy integration into various systems.

Key Features

• Stroke Length: 70 mm

• Piston Diameter: 12 mm

• Operating Principle: Double-acting

• Piston Rod End: External thread (M6)

• Standard Compliance: ISO 6432

• Mounting Position: Suitable for any orientation

• Cushioning: Elastic cushioning rings/pads at both ends for smooth operation

• Position Sensing: Compatible with proximity switches

• Pneumatic Connection: M5

• Operating Pressure: 1.5 to 10 bar (0.15 to 1 MPa)

• Operating Medium: Compressed air according to ISO 8573-1:2010 [7:4:4]

• Lubrication: Can be operated with lubricated air if required

Performance Data

• Theoretical Force at 6 bar

  • Advancing: 67.9 N

  • Retracting: 50.9 N

• Impact Energy at End Positions: 0.07 J

• Ambient Temperature Range: -20°C to +80°C

• Corrosion Resistance Class: CRC 2 (Moderate corrosion resistance)

• Cleanroom Compatibility: Class 6 according to ISO 14644-1

• LABS (PWIS) Compliance: VDMA 24364-B1/B2-L

Construction and Materials

The cylinder features a robust design consisting of a piston, piston rod, and cylinder barrel, ensuring long service life and dependable operation.

• Cover Material: Colorless anodized wrought aluminum alloy

• Piston Rod Material: High-alloy stainless steel

• Seal Material: NBR and polyurethane (TPE-U/PU)

• RoHS Compliant

Applications

Ideal for use in:

• Industrial automation systems

• Packaging machinery

• Material handling equipment

• Assembly and manufacturing lines

• Pneumatic control systems

This compact and lightweight cylinder offers high reliability, flexible mounting options, and excellent performance for demanding pneumatic applications.
